Tony,

I have a number of different truck frames that I measure 5' 10" on the wheel base.  I think that is pretty standard.  The big question would be what weight, ie, 50 ton, 75 ton, 100 ton, etc were they using for the cars..

Dean
-----Original Message-----
From: <accrs at mail.accrs.org>
Sent: Jan 22, 2023 8:25 AM
To: ACCRS - All <accrs at mail.accrs.org>
Subject: Re: [Accrs] Gunderson Twin Stack History

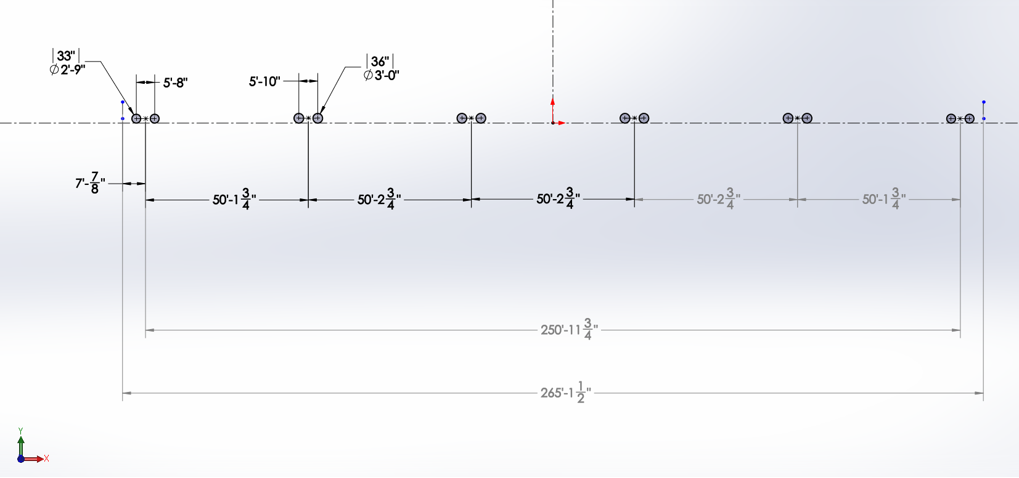

Notice the intermediate trucks have 5’ 10” wheelbase – who makes a correct 5’ 10” truck in HO?







From: Tony Long (mailto:tony.long at outlook.com)
Sent: Sunday, January 22, 2023 8:00 AM
To: ACCRS - All (mailto:accrs at mail.accrs.org)
Subject: Gunderson Twin Stack History

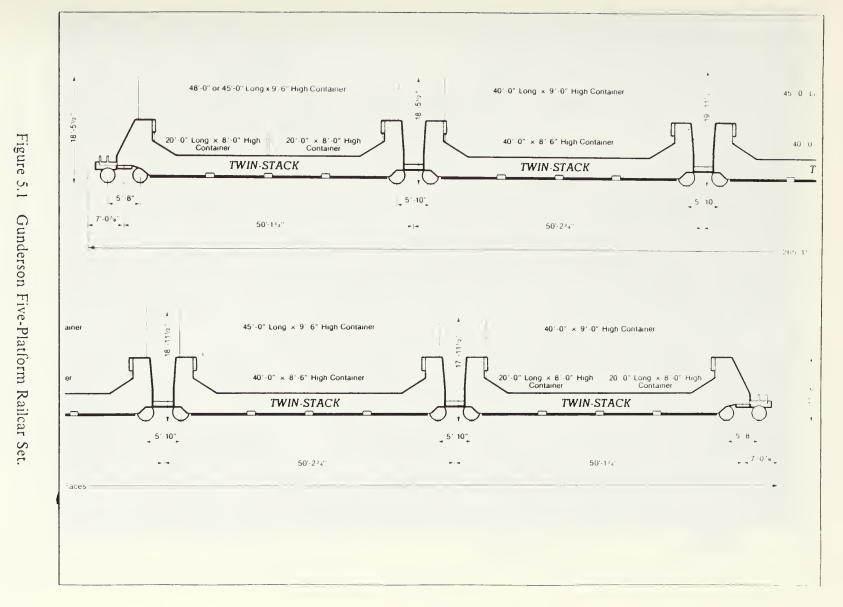

Okay, I finally found the wheelbase dimensions I was looking for regarding this cars in a very unlikely document.  It’s appears to answer my questions so will continue sketching this out.


https://apps.dtic.mil/sti/pdfs/ADA176892.pdf (https://apps.dtic.mil/sti/pdfs/ADA176892.pdf)

There is a lot of information on the history and development of double stacks.   It’s worth reading section IV. DOUBLE-STACKS: PIONEER EFFORTS TO DEVELOPED NETWORK.


Cheers!
Tony
