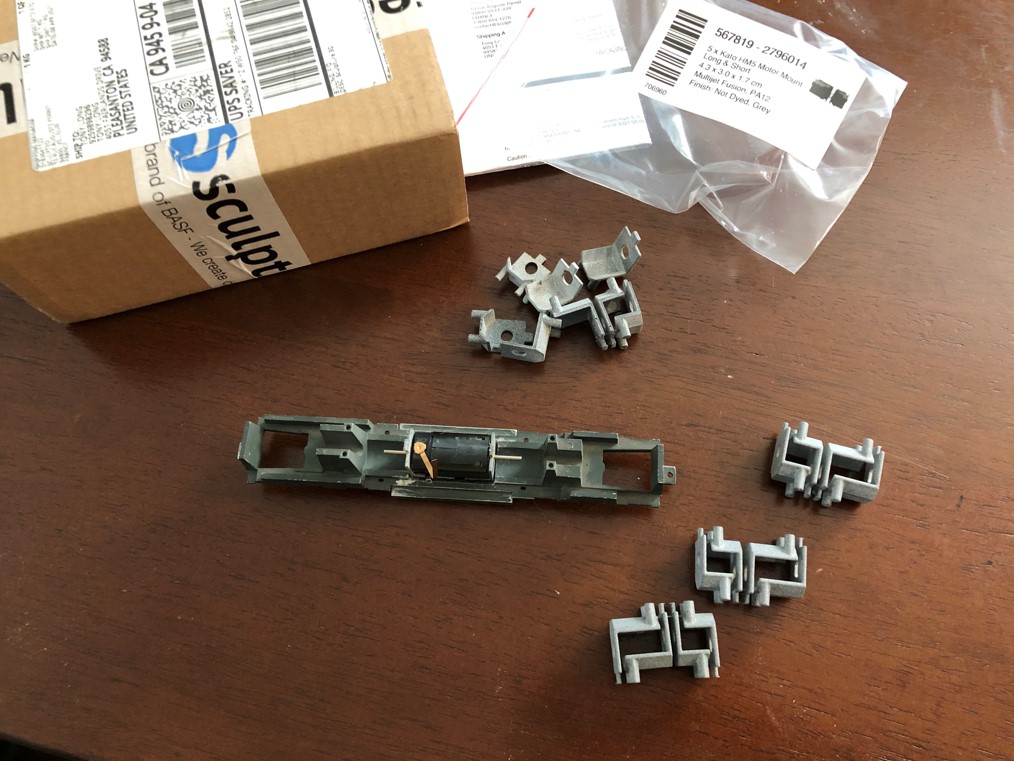

Today I received my shipment of some 3D printed motor mounts a Rock Island U25B project.  The motor is Kato’s HM5 and the chassis is Bowser.  I have a few of the Stewart U25B kits,  then after Bowser purchased Stewart Products they made an improved chassis which is in the image below.  I purchased more of the chassis parts from Bowser and since they parts provided were not that great I decided to re

These are printed on the HP JetFusion 3D printer.  Material is Nylon 12 (PA 12).  I ganged up two together linked together and had 5 printed. Cost total was $37.90.  $6.50 for shipping from France.  I uploaded the print file on April 6th.   I think that’s pretty good.  I had also uploaded to another 3D printer service and they complained about the part arrangement and threw a ISO standard related to aviation parts at me so I just cancelled that order and waited to see how these turned out.

[cid:image003.jpg at 01D72FC8.0F381FA0]

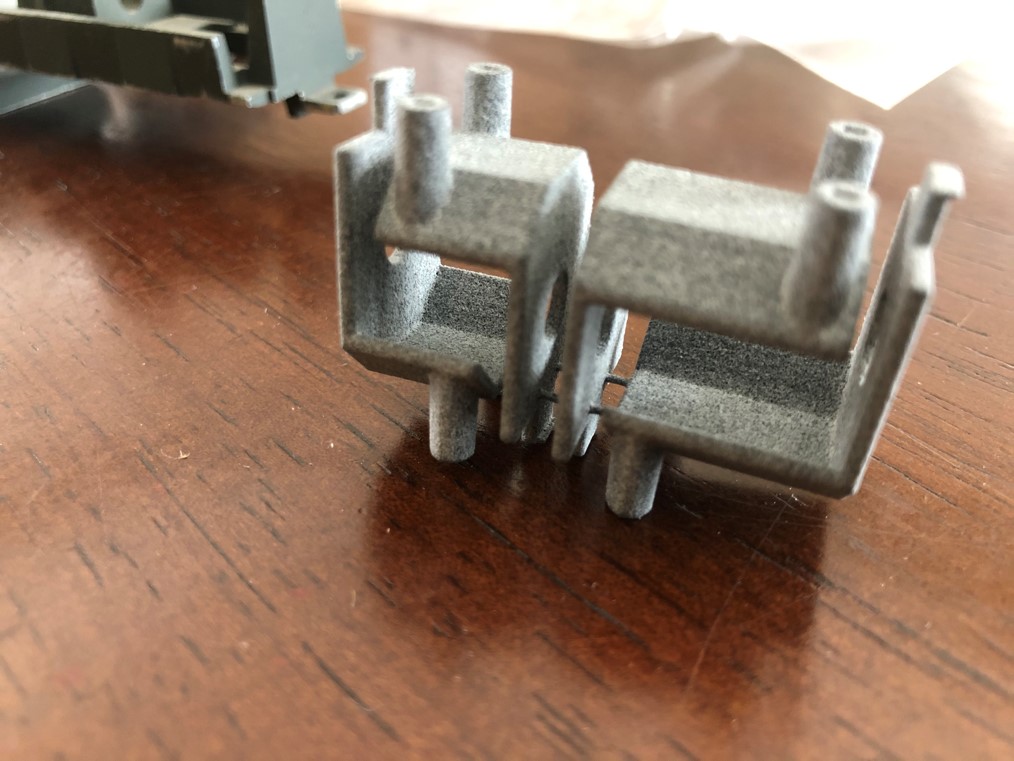

This is a close-up view of the parts. The surface is grainy, but the part is strong. The HP printer is a powder based and requires some post processing when it comes out of the printer.  The legs for the screws need a clean out so I just use a drill

[cid:image005.jpg at 01D72FC8.0F381FA0]

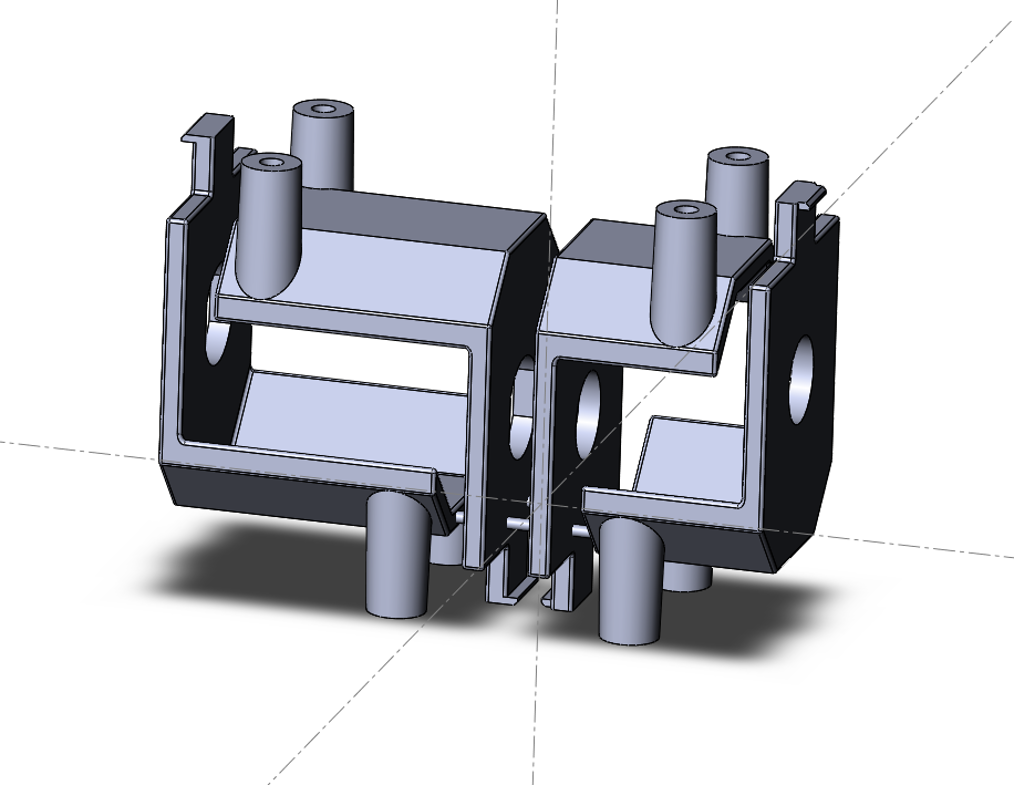

This is the view of the part in CAD.

[cid:image009.png at 01D72FC8.0F381FA0]

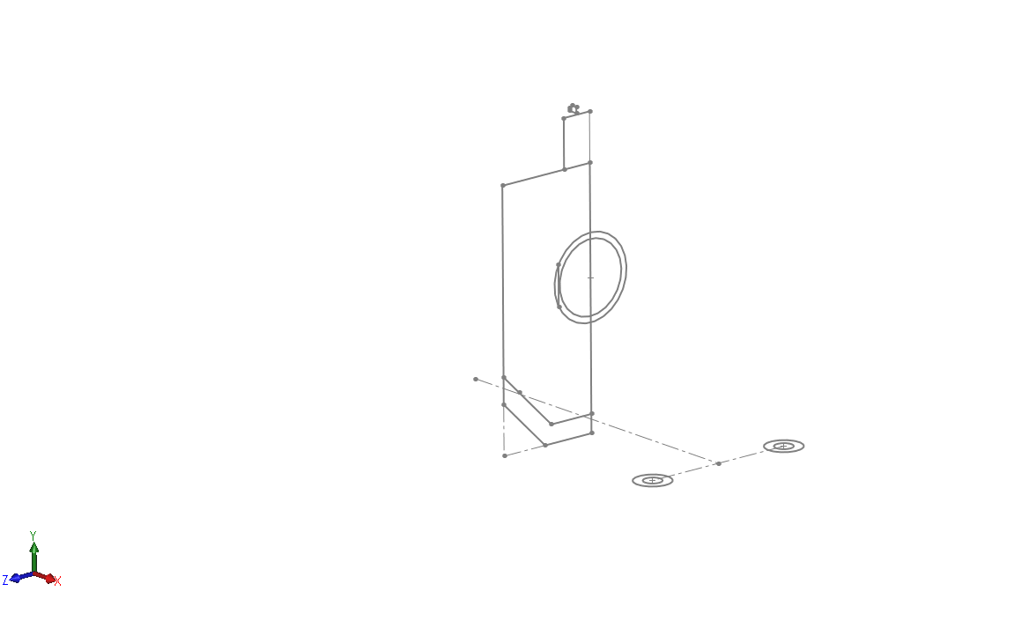

This is a view of the three main sketches to make this.   May not look like it’s all there, but this is all it takes.   There are two configurations of the parts – one is longer than the other. Just a matter of useing the sketches to build out the surfaces of the part.

[cid:image011.png at 01D72FC8.0F381FA0]
